Volt Typhoon has been active since at least 2021 and primarily targets U.S government and defense organizations for intelligence-gathering purposes. The group exploits vulnerable internet-facing servers to gain initial access and leverage living off the land binaries (LOLBin) for evasion purposes.

In February 2024, the Cybersecurity and Infrastructure Security Agency (CISA), National Security Agency (NSA), and Federal Bureau of Investigation (FBI) released a security advisory to provide information regarding the malicious campaign and mitigation process.

Based on the tactics techniques and procedures (TTPs) of Volt Typhoon, the initial access of the threat actor is by exploiting common vulnerabilities in public facing network assets such as Fortinet, Ivanti Connect Secure, Citrix, and Cisco. One of the observed vulnerabilities exploited was CVE-2022-42475 to gain initial access to their victims.

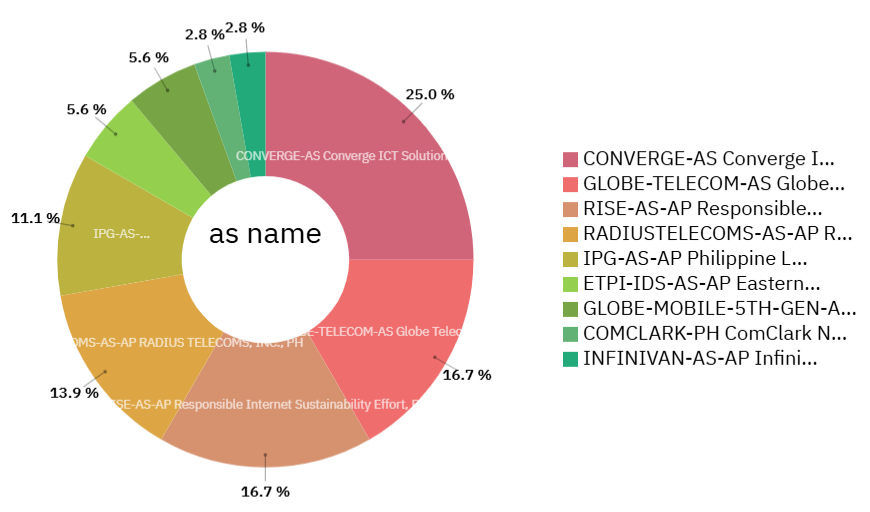

Through the CERT-PH Web Information Gathering System, we still observed assets that are more likely vulnerable to CVE-2022-42475 here in the Philippines. Kindly take note the data on the image below are based on the autonomous system number (ASN) of the assets observed and filtered by this 3rd quarter of the year.

CVE-2022-42475

Another notable vulnerability in Fortinet products, tracked as CVE-2023-27997, has been observed being exploited in the wild. Although Fortinet clarified that the exploitation of this vulnerability is not linked to the Volt Typhoon campaign, it is expected that threat actors will continue to exploit unpatched vulnerabilities in widely used software and devices.

CVE-2023-27997

In August 2024, security researchers from Lumen Technologies discovered an active exploitation of a Zero-day vulnerability in Versa Director that has been attributed to Volt Typhoon. Tracked as CVE-2024-39717, this vulnerability can allow potentially malicious files to be uploaded by users with Provider-Data-Center-Admin or Provider-Data-Center-System-Admin privileges. Versa Director servers are often used by internet service providers (ISPs) and managed service providers (MSPs).

________________________________________________________

A. Tactics, Techniques, and Procedures (TTPs)

For the TTPs used by the Volt Typhoon that is mapped to MITRE ATT&CK, here’s the link:

  • https://attack.mitre.org/groups/G1017/
  • https://mitre-attack.github.io/attack-navigator//#layerURL=https%3A%2F%2Fattack.mitre.org%2Fgroups%2FG1017%2FG1017-enterprise-layer.json

________________________________________________________

B. Indicators of Compromise

IP Address104.161.54.203
IP Address109.166.39.139
IP Address23.227.198.247
SHA-2563a9d8bb85fbcfe92bae79d5ab18e4bca9eaf36cea70086e8d1ab85336c83945f
SHA-2563c2fe308c0a563e06263bbacf793bbe9b2259d795fcc36b953793a7e499e7f71
SHA-25641e5181b9553bbe33d91ee204fe1d2ca321ac123f9147bb475c0ed32f9488597
SHA-256472ccfb865c81704562ea95870f60c08ef00bcd2ca1d7f09352398c05be5d05d
SHA-25666a19f7d2547a8a85cee7a62d0b6114fd31afdee090bd43f36b89470238393d7
SHA-256c7fee7a3ffaf0732f42d89c4399cbff219459ae04a81fc6eff7050d53bd69b99
SHA-256d6ebde42457fe4b2a927ce53fc36f465f0000da931cfab9b79a36083e914ceca
SHA-256ee8df354503a56c62719656fae71b3502acf9f87951c55ffd955feec90a11484
SHA-256ef09b8ff86c276e9b475a6ae6b54f08ed77e09e169f7fc0872eb1d427ee27d31
SHA-256f4dd44bc19c19056794d29151a5b1bb76afd502388622e24c863a8494af147dd
SHA-256fe95a382b4f879830e2666473d662a24b34fccf34b6b3505ee1b62b32adafa15
SHA-25699b80c5ac352081a64129772ed5e1543d94cad708ba2adc46dc4ab7a0bd563f1
SHA-256edc0c63065e88ec96197c8d7a40662a15a812a9583dc6c82b18ecd7e43b13b70
SHA-256389a497f27e1dd7484325e8e02bbdf656d53d5cf2601514e9b8d8974befddf61
SHA-256450437d49a7e5530c6fb04df2e56c3ab1553ada3712fab02bd1eeb1f1adbc267
SHA-2564b0c4170601d6e922cf23b1caf096bba2fade3dfcf92f0ab895a5f0b9a310349
SHA-2566036390a2c81301a23c9452288e39cb34e577483d121711b6ba6230b29a3c9ff
SHA-2567939f67375e6b14dfa45ec70356e91823d12f28bbd84278992b99e0d2c12ace5
SHA-2568fa3e8fdbaa6ab5a9c44720de4514f19182adc0c9c6001c19cf159b79c0ae9c2
SHA-2569dd101caee49c692e5df193b236f8d52a07a2030eed9bd858ed3aaccb406401a
SHA-256b4f7c5e3f14fb57be8b5f020377b993618b6e3532a4e1eb1eae9976d4130cc74
SHA-256baeffeb5fdef2f42a752c65c2d2a52e84fb57efc906d981f89dd518c314e231c
SHA-256c4b185dbca490a7f93bc96eefb9a597684fdf532d5a04aa4d9b4d4b1552c283b
SHA-256cd69e8a25a07318b153e01bba74a1ae60f8fc28eb3d56078f448461400baa984
SHA-256d17317e1d5716b09cee904b8463a203dc6900d78ee2053276cc948e4f41c8295

________________________________________________________

C. References

  • https://attack.mitre.org/groups/G1017/
  • https://www.cisa.gov/news-events/cybersecurity-advisories/aa23-144a
  • https://www.cisa.gov/news-events/cybersecurity-advisories/aa24-038a
  • https://www.microsoft.com/en-us/security/blog/2023/05/24/volt-typhoon-targets-us-critical-infrastructure-with-living-off-the-land-techniques/
  • https://blog.lumen.com/taking-the-crossroads-the-versa-director-zero-day-exploitation/
  • https://www.fortinet.com/blog/psirt-blogs/analysis-of-fg-ir-22-398-fortios-heap-based-buffer-overflow-in-sslvpnd
  • https://www.fortinet.com/blog/psirt-blogs/analysis-of-cve-2023-27997-and-clarifications-on-volt-typhoon-campaign
  • https://lolbas-project.github.io/
